Tracks & Components for 2003 Volvo XC90

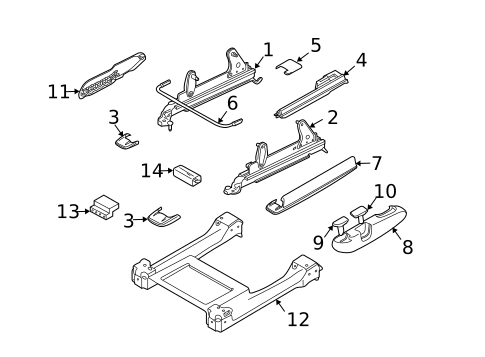

No.
Part # / Description / Price
Price
1
2001-2004 Volvo Height Adjuster
Volvo
Volvo Description: Power seat, 2001-04, without seat memory. Power seat, 1999-04. Power seat, 2003-04, driver seat, with seat memory.
1
2001-2004 Volvo Height Adjuster Volvo
Volvo Description: Power seat, 2001-04, with seat memory. Power seat, 1999-04. Power seat, 2003-04, passenger seat, with seat memory.
1
Height Adjuster Volvo
Volvo Description: Power seat, 2001-04, without seat memory. Power seat, 2003-04, driver seat, without seat memory.
1
Height Adjuster Volvo
Volvo Description: Power seat, 2001-04, without seat memory. Power seat, 2003-04, passenger seat, without seat memory.
2
2003 2004 Volvo XC90 - Seat Track Volvo
Volvo Positions: Left
Description: Power seat, 2003-04, driver seat.
2
2003 2004 Volvo XC90 - Seat Track Volvo
Volvo Positions: Right
Description: Power seat, 2003-04, driver seat.
2
2003 2004 Volvo XC90 - Seat Track Volvo
Volvo Positions: Left
Description: Power seat, 2003-04, passenger seat.
3
Front Cover Volvo
Volvo Positions: Left
Description: Power seat, 2001-04, gray. Power seat, 1999-04, gray. Power seat, 2003-04, gray.
3
Front Cover Volvo
Volvo Positions: Left
Description: Power seat, 2001-04, oak. Power seat, 1999-04, arena. Power seat, 2003-04, oak.
4
Rear Cover Volvo
Volvo Positions: Left
Description: Power seat, 2001-04, driver seat, gray. Power seat, 1999-04, outer, gray. Power seat, 2003-04, driver seat, gray.
4
Rear Cover Volvo
Volvo Positions: Right
Description: Power seat, 2001-04, driver seat, gray. Power seat, 1999-04, inner, gray. Power seat, 2003-04, driver seat, gray.
4
2001-2004 Volvo Rear Cover Volvo
Volvo Positions: Left
Description: Power seat, 2001-04, driver seat, oak. Power seat, 1999-04, outer, arena. Power seat, 2003-04, driver seat, oak.
4
2001-2004 Volvo Rear Cover Volvo
Volvo Positions: Right
Description: Power seat, 2001-04, driver seat, oak. Power seat, 1999-04, inner, arena. Power seat, 2003-04, driver seat, oak.
4
2001-2004 Volvo Rear Cover Volvo
Volvo Positions: Right
Description: Power seat, 2001-04, passenger seat, gray. Power seat, 1999-04, outer, gray. Power seat, 2003-04, passenger seat, gray.
4
Rear Cover Volvo
Volvo Positions: Left
Description: Power seat, 2001-04, passenger seat, gray. Power seat, 1999-04, inner, gray. Power seat, 2003-04, passenger seat, gray.
4
2001-2004 Volvo Rear Cover Volvo
Volvo Positions: Right
Description: Power seat, 2001-04, passenger seat, oak. Power seat, 1999-04, outer, arena. Power seat, 2003-04, passenger seat, oak.
4
2001-2004 Volvo Rear Cover Volvo
Volvo Positions: Left
Description: Power seat, 2001-04, passenger seat, oak. Power seat, 1999-04, inner, arena. Power seat, 2003-04, passenger seat, oak.
5
1999-2005 Volvo Motor Volvo
Volvo Positions: Left
Description: S70, V70. Height adjustment. Front. S60. Seatbase adjustment. Power seat, 1999-04, with seat memory. S80. XC90. Adjuster motor. Power seat, 2003-04, with seat memory.
5
1999-2005 Volvo Motor Volvo
Volvo Positions: Left
Description: S70, V70. Foward/backward. S60. Seatbase adjustment. Power seat, 1999-04, without seat memory. S80. XC90. Adjuster motor. Power seat, 2003-04, without seat memory.
6
2003-2004 Volvo Axle Volvo
Volvo Positions: Left
Description: Power seat, 1999-04. Power seat, 2003-04.
MSRP $14.11
$12.35
MSRP $14.11
$12.35
7
Cover Plate Volvo
Volvo Description: Power seat, 1999-04. Power seat, 2001-04. Power seat, 2003-04, driver seat.
8
2003 2004 Volvo XC90 - Seat Support Volvo
Volvo Description: Manual seat, passenger side. Power seat, 2003-04, passenger seat.
9
MSRP $441.67
$325.07
10
1999-2004 Volvo Heater Control Volvo
Volvo Positions: Left
Description: Power seat, 2001-04. S60. S80. Manual seat, 1999-02. Power seat, 1999-04, seat memory, from ch# 29668. Manual seat, passenger side, seat heater. Power seat, 2003-04, #2. XC90. Manual seat, passenger side, 2003-04. Power seats, 2003-04.
12
2003 2004 Volvo XC90 - Control Module Connector Volvo
Volvo Description: Power seat, 2003-04, driver seat. Manual seat, passenger side.
13
1999-2004 Volvo Side Cover Volvo
Volvo Description: Power seat, 2001-04, oak. Power seat, 1999-04, arena. Power seat, 2003-04, driver seat, oak.
13
1999-2004 Volvo Side Cover Volvo
Volvo Description: Power seat, 2001-04, gray. Power seat, 1999-04, gray. Power seat, 2003-04, driver seat, gray.
13
1999-2004 Volvo Side Cover Volvo
Volvo Description: Power seat, 2001-04, oak. Power seat, 1999-04, arena. Power seat, 2003-04, passenger seat, oak.
13
1999-2004 Volvo Side Cover Volvo
Volvo Description: Power seat, 2001-04, gray. Power seat, 1999-04, gray. Power seat, 2003-04, passenger seat, gray.
14
2003 2004 Volvo XC90 - Outer Panel Volvo
Volvo Description: Power seat, 2003-04, passenger seat, gray. Manual seat, passenger side, gray.
14
2003 2004 Volvo XC90 - Outer Panel Volvo
Volvo Description: Power seat, 2003-04, passenger seat, oak. Manual seat, passenger side, oak.
15
Seat Switch Volvo
Volvo Notes: PARTS: Order by application.
Description: S60. S70, V70. With memory seat. Left. S80. XC90. Power seat, 2003-04, driver seat, gray.
15
Seat Switch Volvo
Volvo Notes: PARTS: Order by application.
Description: S60. S70, V70. Without memory seat. Left. XC90. Power seat, 2003-04, passenger seat, gray.
15
Seat Switch Volvo
Volvo Notes: PARTS: Order by application.
Description: Power seat, 2003-04, driver seat, oak.
15
2003 Volvo XC90 - Seat Switch Volvo
Volvo Notes: PARTS: Order by application.
Description: Power seat, 2003-04, passenger seat, oak.

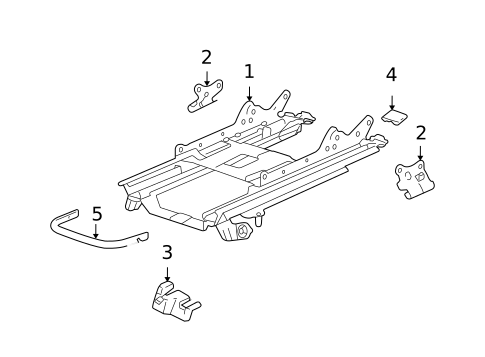

No.
Part # / Description / Price
Price
1
2001-2004 Volvo Seat Track Volvo
Volvo Positions: Right
Notes: PARTS: Part included with seat frame assembly.
Description: Manual seat, passenger side, to ch# 7166.
1
2003 2004 Volvo XC90 - Outer Rail Volvo
Volvo Positions: Right
Notes: PARTS: Part included with seat frame assembly.
Description: Manual seat, passenger side, from ch# 7167.
2
2001-2004 Volvo Seat Track Volvo
Volvo Positions: Right
Notes: PARTS: Part included with seat frame assembly.
Description: Manual seat, 1999-04, inner, from ch# 208097. Manual seat, passenger side, to ch# 7166.
2
2003 2004 Volvo XC90 - Inner Rail Volvo
Volvo Positions: Right
Notes: PARTS: Part included with seat frame assembly.
Description: Manual seat, passenger side, from ch# 7167.
3
2003 2004 Volvo XC90 - Side Cover Volvo
Volvo Positions: Right
Description: Manual seat, passenger side, gray.
3
2003 2004 Volvo XC90 - Side Cover Volvo
Volvo Positions: Right
Description: Manual seat, passenger side, oak.
3
2003 2004 Volvo XC90 - Front Cover Volvo
Volvo Positions: Right
Description: Manual seat, passenger side, inner, gray.
3
2003 2004 Volvo XC90 - Front Cover Volvo
Volvo Positions: Right
Description: Manual seat, passenger side, inner, oak.
4
2003 2004 Volvo XC90 - Rear Cover Volvo
Volvo Positions: Right
Description: Manual seat, passenger side, outer, gray.
4
2003 2004 Volvo XC90 - Rear Cover Volvo
Volvo Positions: Right
Description: Manual seat, passenger side, outer, oak.
5
2003 2004 Volvo XC90 - Rear Cover Volvo
Volvo Positions: Right
Description: Manual seat, passenger side, inner, gray.
5
2003 2004 Volvo XC90 - Rear Cover Volvo
Volvo Positions: Right
Description: Manual seat, passenger side, inner, oak.
6
1998-2004 Volvo Support Brace Volvo
Volvo Positions: Right
Description: Manual seat, 2001-04. Manual seat, 1999-04. Manual seat, passenger side.
8
1999-2004 Volvo Side Cover Volvo
Volvo Positions: Right
Description: Manual seat, 1999-04, arena. Manual seat, passenger side, oak.
8
1999-2004 Volvo Side Cover Volvo
Volvo Positions: Right
Description: Manual seat, 1999-04, gray. Manual seat, passenger side, gray.
9
1999-2004 Volvo Knob Volvo
Volvo Positions: Right
Description: Manual seat, 1999-04, front. Manual seat, passenger side, front.
10
1999-2004 Volvo Knob Volvo
Volvo Positions: Right
Description: Manual seat, 1999-04, rear. Manual seat, passenger side, rear.
11
2003 2004 Volvo XC90 - Outer Panel Volvo
Volvo Positions: Right
Description: Power seat, 2003-04, passenger seat, gray. Manual seat, passenger side, gray.
11
2003 2004 Volvo XC90 - Outer Panel Volvo
Volvo Positions: Right
Description: Power seat, 2003-04, passenger seat, oak. Manual seat, passenger side, oak.
12
2003 2004 Volvo XC90 - Seat Support Volvo
Volvo Positions: Right
Description: Manual seat, passenger side. Power seat, 2003-04, passenger seat.
13
1999-2004 Volvo Heater Control Volvo
Volvo Positions: Right
Description: Power seat, 2001-04. S60. S80. Manual seat, 1999-02. Power seat, 1999-04, seat memory, from ch# 29668. Manual seat, passenger side, seat heater. Power seat, 2003-04, #2. XC90. Manual seat, passenger side, 2003-04. Power seats, 2003-04.
14
2003 2004 Volvo XC90 - Control Module Connector Volvo
Volvo Positions: Right
Description: Power seat, 2003-04, driver seat. Manual seat, passenger side.
No.
Part # / Description / Price
Price
2
3
2003-2014 Volvo XC90 - Front Cover Volvo
Volvo Positions: Left
Description: 2nd row, inner seat, 5 passenger, gray.
3
2003-2006 Volvo XC90 - Front Cover Volvo
Volvo Positions: Left
Description: 2nd row, inner seat, 5 passenger, oak.
3
2003-2014 Volvo XC90 - Front Cover Volvo
Volvo Positions: Right
Description: 2nd row, inner seat, 5 passenger, gray.
3
2003-2006 Volvo XC90 - Front Cover Volvo
Volvo Positions: Right
Description: 2nd row, inner seat, 5 passenger, oak.
3
2003-2014 Volvo XC90 - Front Cover Volvo
Volvo Positions: Left
Description: 2nd row, inner seat, 7 passenger, gray.
3
2003-2006 Volvo XC90 - Front Cover Volvo
Volvo Positions: Left
Description: 2nd row, inner seat, 7 passenger, oak.
3
2003-2014 Volvo XC90 - Front Cover Volvo
Volvo Positions: Right
Description: 2nd row, inner seat, 7 passenger, gray.
3
2003-2006 Volvo XC90 - Front Cover Volvo
Volvo Positions: Right
Description: 2nd row, inner seat, 7 passenger, oak.
4
2003-2014 Volvo XC90 - Rear Cover Volvo
Volvo Description: 2nd row, inner seat, gray. 2nd row, outer seat, gray.
4
2003-2006 Volvo XC90 - Rear Cover Volvo
Volvo Description: 2nd row, inner seat, oak. 2nd row, outer seat, oak.

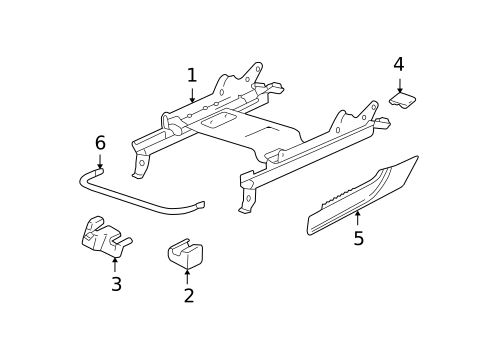

No.
Part # / Description / Price
Price
1
2003-2014 Volvo XC90 - Seat Track Volvo
Volvo Positions: Left
Description: 2nd row, outer seat, 7 passenger.
MSRP $962.60
$689.99
MSRP $962.60
$689.99
1
2003-2014 Volvo XC90 - Seat Track Volvo
Volvo Positions: Left
Description: 2nd row, outer seat, 5 passenger.
1
2003-2014 Volvo XC90 - Seat Track Volvo
Volvo Positions: Right
Description: 2nd row, outer seat, 7 passenger.
2
2003-2014 Volvo XC90 - Front Cover Volvo
Volvo Positions: Left
Description: 2nd row, outer seat, outer, gray.
2
2003-2006 Volvo XC90 - Front Cover Volvo
Volvo Positions: Left
Description: 2nd row, outer seat, outer, oak.
2
2003-2014 Volvo XC90 - Front Cover Volvo
Volvo Positions: Right
Description: 2nd row, outer seat, outer, gray.
2
2003-2006 Volvo XC90 - Front Cover Volvo
Volvo Positions: Right
Description: 2nd row, outer seat, outer, oak.
4
2003-2014 Volvo XC90 - Rear Cover Volvo
Volvo Positions: Left
Description: 2nd row, inner seat, gray. 2nd row, outer seat, gray.
4
2003-2006 Volvo XC90 - Rear Cover Volvo
Volvo Positions: Left
Description: 2nd row, inner seat, oak. 2nd row, outer seat, oak.
5
2003-2014 Volvo XC90 - Outer Cover Volvo
Volvo Positions: Left
Description: 2nd row, outer seat, gray.
MSRP $24.92
$19.46
MSRP $24.92
$19.46
