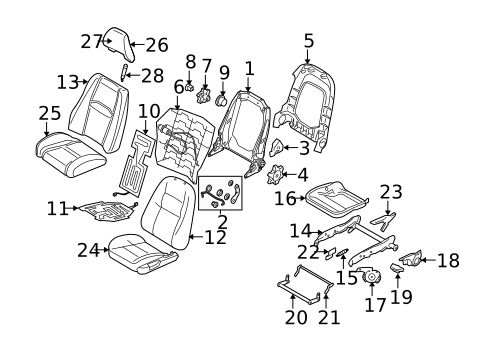

Front Seat Components for 2007 Volvo XC90
No.
Part # / Description / Price
Price
1
Seat Back Frame
Volvo
Volvo Positions: Left
Description: Power seat, 2005-06. Power seat, 2005-14. Power seat, 2005-09. Power seats, to ch# 539327. Upper components. Power seats, to ch# 495494.
1
Seat Back Frame Volvo
Volvo Positions: Right
Description: Power seat, 2005-06. Power seat, 2005-14. Power seat, 2005-09. Power seats, to ch# 539327. With power. Power seat, upper components. Power seats, to ch# 495494.
2
2005-2018 Volvo Hinge Assembly Volvo
Volvo Positions: Left
Notes: PARTS: Part included with seat back frame.
Description: With quick fold. With foldable. Power seat, 2005-14. Manual seat, 2005-09, extendable. Manual seat, passenger side, 2005-09. Whiplash, with extendable.
MSRP $142.70
$107.77
MSRP $142.70
$107.77
3
MSRP $8.60
$6.88
4
2005-2016 Volvo Seat Back Panel Volvo
Volvo Positions: Left
Description: Manual seat, 2005-09. Power seat, 2005-09. Manual seat, 2005-06. Upper components. Power seat, 2005-06. Power seat, 2005-14, without ventilation. With power, without vented seat.
5
2004-2016 Volvo Lumbar Support Volvo
Volvo Positions: Left
Description: Power seats. Power seat, 2005-14. Power seat, 2005-06. Power seat, 2005-09. Manual seats, with lumbar support. With power, without vented seat. Upper components.
6
2004-2018 Volvo Lumbar Adjuster Volvo
Volvo Positions: Right
Description: Upper components. Manual seats. Power seats. Power seat, 2005-14. Power seat, 2005-06. Power seat, 2005-09. Manual seat, 2005-06.
MSRP $24.92
$19.46
MSRP $24.92
$19.46
7
2004-2018 Volvo Adjust Knob Cap Volvo
Volvo Positions: Left
Description: Manual passenger seat. Upper components. Manual seats. Power seat, 2005-14. With power. Power seat, 2005-06. Power seats. Manual seat, 2005-09. Power seat, 2005-09. Manual seat, 2005-06.
MSRP $4.09
$3.67
MSRP $4.09
$3.67
8
2004-2018 Volvo Lumbar Adjuster Inner Cover Volvo
Volvo Positions: Left
Description: Upper components. Power seat, 2005-14. Power seat, 2005-09. Manual seat, passenger side, 2005-09. Manual seat, 2005-06. Power seat, 2005-06. Power seats, to ch# 283431. With power. Manual seats, fm ch# 283432. Power seats, fm ch# 283432.
MSRP $5.89
$5.28
MSRP $5.89
$5.28
9
Motor Volvo
Volvo Positions: Left
Description: Power seat, 2005-06. Power seat, 2005-14, to ch# 512746. V70, XC70. Recline motor. Right. Power seat, 2005-09. To ch# 99521. Power seats, to ch# 372351. With power, to ch# 87765.
9
Motor Volvo
Volvo Positions: Right
Description: Power seat, 2005-06. Power seat, 2005-09. Power seat, 2005-14, to ch# 512746. V70, XC70. Recline motor. Left. To ch# 99521. Power seats, to ch# 372351. To ch# 87765.
10
2004-2014 Volvo Adjust Motor Bracket Volvo
Volvo Positions: Right
Description: Power seats. Power seat, 2005-14. Power seat, 2005-06. Power seat, 2005-09.
10
2004-2014 Volvo Adjust Motor Bracket Volvo
Volvo Positions: Left
Description: Power seats. Power seat, 2005-14. Power seat, 2005-06. Power seat, 2005-09.
11
2005-2014 Volvo Protector Volvo
Volvo Positions: Right
Description: Power seat, 2005-14. Power seat, 2005-06. Power seat, 2005-09. Power seats. To che 98567. Power seat, upper components.
11
2005-2014 Volvo Protector Volvo
Volvo Positions: Left
Description: Power seat, 2005-14. Power seat, 2005-06. Power seat, 2005-09. Power seats. To che 98567. Upper components.
12
2005-2014 Volvo XC90 - Seat Back Heater Volvo
Volvo Positions: Left
Description: Manual seat, passenger side, 2005-09. XC90. Seatback. Without ventilated seats. Power seat, 2005-14, without ventilation.
13
2005-2014 Volvo XC90 - Seat Cushion Heater Volvo
Volvo Positions: Left
Description: XC90. Seat cushion. Power seat, 2005-14, with sensor. Manual seat, passenger side, 2005-09, with sensor.
13
2005-2014 Volvo XC90 - Seat Cushion Heater Volvo
Volvo Positions: Right
Description: XC90. Seat cushion. Power seat, 2005-14, without sensor.
MSRP $167.61
$125.51
MSRP $167.61
$125.51
14
2005-2014 Volvo XC90 - Seat Back Pad Volvo
Volvo Positions: Left
Description: Power seat, 2005-14, without vented seats.
15
2007-2013 Volvo XC90 - Seat Back Cover Volvo
Volvo Positions: Right
Notes: PARTS: Order by trim code.
Description: Power seat, 2005-14, gray.
15
15
Seat Back Cover Volvo
Volvo Positions: Left
Notes: PARTS: Order by trim code.
Description: Power seat, 2005-14, brown, to ch# 498002.
15
15
2007-2013 Volvo XC90 - Seat Back Cover Volvo
Volvo Positions: Left
Notes: PARTS: Order by trim code.
Description: Power seat, 2005-14, gray.
16
2005-2014 Volvo Seat Frame Volvo
Volvo Positions: Left
Description: Power seat, 2005-14. Power seat, 2005-06. Manual seat, 2005-09. Power seat, 2005-09.
16
2005-2014 Volvo Seat Frame Volvo
Volvo Positions: Right
Description: Power seat, 2005-14. Power seat, 2005-09. Manual seat, 2005-06. Power seat, 2005-06.
17
2005-2018 Volvo Spring Volvo
Volvo Positions: Left
Description: Power seat, 2005-14. Manual seat, 2005-06. Power seat, 2005-06. Manual seat, 2005-09. Power seat, 2005-09. Manual passenger seat.
18
2004-2018 Volvo Seat Frame Volvo
Volvo Positions: Right
Description: Power seat, lower components, without ventilation. Power seats. With power, without vented seat. Power seat, 2005-06. Power seat, 2005-09. Power seat, 2005-14, without ventilation.
20
2004-2018 Volvo Recline Motor Link Volvo
Volvo Positions: Right
Description: With power, front. Power seat, 2005-14. Slide. Power seat, 2005-06, front. Power seat, 2005-09.
21
2004-2018 Volvo Rear Link Assembly Volvo
Volvo Positions: Right
Description: Without power, rear. Power seat, 2005-14. Manual seat, 2005-06, rear. Power seat, 2005-06, rear. Manual seat, 2005-09. Manual seats, with height adjustable, height. Power seat, lower components, rear.
22
MSRP $600.22
$437.92
24
2005-2018 Volvo Seat Frame Side Bracket Volvo
Volvo Positions: Left
Description: Power seat, 2005-14. Power seat, 2005-06. Power seat, 2005-09.
MSRP $24.92
$19.46
MSRP $24.92
$19.46
25
2005-2014 Volvo XC90 - Seat Cushion Pad Volvo
Volvo Positions: Left
Description: Manual seat, passenger side, 2005-09. Power seat, 2005-14, without vented seat.
MSRP $396.37
$291.73
MSRP $396.37
$291.73
26
Seat Cover Volvo
Volvo Positions: Right
Notes: PARTS: Order by trim code.
Description: Power seat, 2005-14, brown, from ch# 372597 to ch# 430272.
26
Seat Upholstery - BOTTOM Volvo
Volvo Positions: Right
Notes: PARTS: Order by trim code.
Description: SEAT UPHOLSTERY, BOTTOM
26
2007-2014 Volvo XC90 - Seat Cover Volvo
Volvo Positions: Right
Notes: PARTS: Order by trim code.
Description: Power seat, 2005-14, gray.
MSRP $396.37
$291.73
MSRP $396.37
$291.73
26
Seat Cover Volvo
Volvo Positions: Left
Notes: PARTS: Order by trim code.
Description: Power seat, 2005-14, brown, to ch# 372596.
27
2005-2009 Volvo Headrest Pad Volvo
Volvo Positions: Left
Description: Power seat, 2005-09. Power seat, 2005-14. Manual seat, passenger side, 2005-09. Manual seat, 2005-06, without speaker. Power seat, 2005-06, without speaker.
28
2007 2008 Volvo XC90 - Headrest Cover Volvo
Volvo Positions: Left
Notes: PARTS: Order by trim code.
Description: Power seat, 2005-14, gray. Manual seat, passenger side, 2005-09, gray, to ch# 372596.
28
Headrest Cover Volvo
Volvo Positions: Left
Notes: PARTS: Order by trim code.
Description: Manual seat, passenger side, 2005-09, brown, from ch# 372597. Power seat, 2005-14, brown.
28
2007 2008 Volvo XC90 - Headrest Cover Volvo
Volvo Positions: Left
Notes: PARTS: Order by trim code.
Description: Manual seat, passenger side, 2005-09, mocca, from ch#3 72597. Power seat, 2005-14, mocha.
29
2004-2018 Volvo Headrest Guide Volvo
Volvo Positions: Left
Description: Upper components. Manual seats. Power seats. Power seat, 2005-14. Manual seat, 2005-06. Power seat, 2005-09. Manual seat, passenger side, 2005-09. Power seat, 2005-06. Without power.
MSRP $8.60
$6.88
MSRP $8.60
$6.88
No.
Part # / Description / Price
Price
1
Seat Back Frame Volvo
Volvo Positions: Right
Description: Manual seat, 2005-06. Manual seats, to ch# 304266. Manual seat, upper components. Manual seats, ch#304267 to 459569. Manual seat, 2005-09, from ch# 637581. Without power, from ch# 98509.
2
2005-2018 Volvo Hinge Assembly Volvo
Volvo Positions: Right
Notes: PARTS: Part included with seat back frame.
Description: With quick fold. With foldable. Power seat, 2005-14. Manual seat, 2005-09, extendable. Manual seat, passenger side, 2005-09. Whiplash, with extendable.
MSRP $142.70
$107.77
MSRP $142.70
$107.77
3
2005-2018 Volvo Hinge Cover Volvo
Volvo Positions: Right
Description: Without power, with extendable. With foldable. Manual seat, 2005-09, extendable. Manual seat, 2005-06, foldable. Manual seat, passenger side, 2005-09.
MSRP $24.92
$19.46
MSRP $24.92
$19.46
4
2004-2011 Volvo Adjust Knob Volvo
Volvo Positions: Right
Description: Manual seats. Manual seat, 2005-06. Manual seat, passenger side, 2005-09. Without power. Manual seat, upper components.
6
2004-2014 Volvo Lumbar Support Volvo
Volvo Positions: Right
Description: Power seats. Manual seat, 2005-09, extendable. Manual seat, 2005-06. Manual seat, passenger side, 2005-09. Manual seats, with lumbar support. Without power. Power seat, 2005-14. Manual seat, upper components. Power seat, 2005-06.
9
2004-2018 Volvo Lumbar Adjuster Inner Cover Volvo
Volvo Positions: Right
Description: Upper components. Power seat, 2005-14. Power seat, 2005-09. Manual seat, passenger side, 2005-09. Manual seat, 2005-06. Power seat, 2005-06. Power seats, to ch# 283431. With power. Manual seats, fm ch# 283432. Power seats, fm ch# 283432.
MSRP $5.89
$5.28
MSRP $5.89
$5.28
10
2005-2014 Volvo XC90 - Seat Back Heater Volvo
Volvo Positions: Right
Description: Manual seat, passenger side, 2005-09. XC90. Seatback. Without ventilated seats. Power seat, 2005-14, without ventilation.
11
2005-2014 Volvo XC90 - Seat Cushion Heater Volvo
Volvo Positions: Right
Description: XC90. Seat cushion. Power seat, 2005-14, with sensor. Manual seat, passenger side, 2005-09, with sensor.
12
2005-2014 Volvo XC90 - Seat Back Pad Volvo
Volvo Positions: Right
Description: Manual seat, passenger side, 2005-09. Power seat, 2005-14.
13
Seat Back Cover Volvo
Volvo Positions: Right
Notes: PARTS: Order by trim code.
Description: Manual seat, passenger side, 2005-09, brown, to ch# 372596.
13
Seat Back Cover Volvo
Volvo Positions: Right
Notes: PARTS: Order by trim code.
Description: Manual seat, passenger side, 2005-09, brown, ch#372597 to 498002.
16
2004-2018 Volvo Seat Base Volvo
Volvo Positions: Right
Description: Manual seat, lower components. Manual seats. Without power. Manual seat, 2005-06. Manual seat, passenger side, 2005-09.
17
2004-2018 Volvo Lumbar Pump Volvo
Volvo Positions: Right
Description: Manual seats, front. Manual seat, lower components, front. Without power, front. Manual seat, 2005-06, front. Manual seat, passenger side, 2005-09, front. Manual seats, driver side.
18
2004-2013 Volvo Lumbar Pump Volvo
Volvo Positions: Right
Description: Manual seats, rear. Manual seat, 2005-06, rear. Manual seats, passenger side. Without power, rear. Manual seat, lower components, rear. Manual passenger seat, rear.
19
2005-2016 Volvo Lumbar Pump Handle Volvo
Volvo Positions: Right
Description: Without power, front pump. Manual seat, 2005-06. Manual seat, passenger side, 2005-09. Manual seats, front.
20
2004-2018 Volvo Front Link Assembly Volvo
Volvo Positions: Right
Description: Manual passenger seat, slide. Manual seat, lower components, front. Without power, front. Manual seat, 2005-06, front. Manual seat, passenger side, 2005-09. Manual seats, with height adjustable, slide.
22
2005-2013 Volvo Front Bracket Volvo
Volvo Positions: Right
Description: Manual seat, 2005-06. Manual seats. Power seats. Manual passenger seat.
23
2004-2018 Volvo Handle Volvo
Volvo Positions: Right
Description: Manual seat, lower components. Without power. Manual seat, 2005-06. Manual seat, passenger side, 2005-09. Manual seats, rear.
MSRP $19.48
$15.21
MSRP $19.48
$15.21
24
2005-2014 Volvo XC90 - Seat Cushion Pad Volvo
Volvo Positions: Right
Description: Manual seat, passenger side, 2005-09. Power seat, 2005-14, without vented seat.
MSRP $396.37
$291.73
MSRP $396.37
$291.73
26
2005-2009 Volvo Headrest Pad Volvo
Volvo Positions: Right
Description: Power seat, 2005-09. Power seat, 2005-14. Manual seat, passenger side, 2005-09. Manual seat, 2005-06, without speaker. Power seat, 2005-06, without speaker.
27
Headrest Cover Volvo
Volvo Positions: Right
Notes: PARTS: Order by trim code.
Description: Manual seat, passenger side, 2005-09, brown, to ch# 372596.
27
2007 2008 Volvo XC90 - Headrest Cover Volvo
Volvo Positions: Right
Notes: PARTS: Order by trim code.
Description: Manual seat, passenger side, 2005-09, mocca, from ch#3 72597. Power seat, 2005-14, mocha.
27
Headrest Cover Volvo
Volvo Positions: Right
Notes: PARTS: Order by trim code.
Description: Manual seat, passenger side, 2005-09, brown, from ch# 372597. Power seat, 2005-14, brown.
27
2007 2008 Volvo XC90 - Headrest Cover Volvo
Volvo Positions: Right
Notes: PARTS: Order by trim code.
Description: Power seat, 2005-14, gray. Manual seat, passenger side, 2005-09, gray, to ch# 372596.
27
Headrest Cover Volvo
Volvo Positions: Right
Notes: PARTS: Order by trim code.
Description: Manual seat, passenger side, 2005-09, mocca, to ch# 372596.
28
2004-2018 Volvo Headrest Guide Volvo
Volvo Positions: Right
Description: Upper components. Manual seats. Power seats. Power seat, 2005-14. Manual seat, 2005-06. Power seat, 2005-09. Manual seat, passenger side, 2005-09. Power seat, 2005-06. Without power.
MSRP $8.60
$6.88
MSRP $8.60
$6.88
